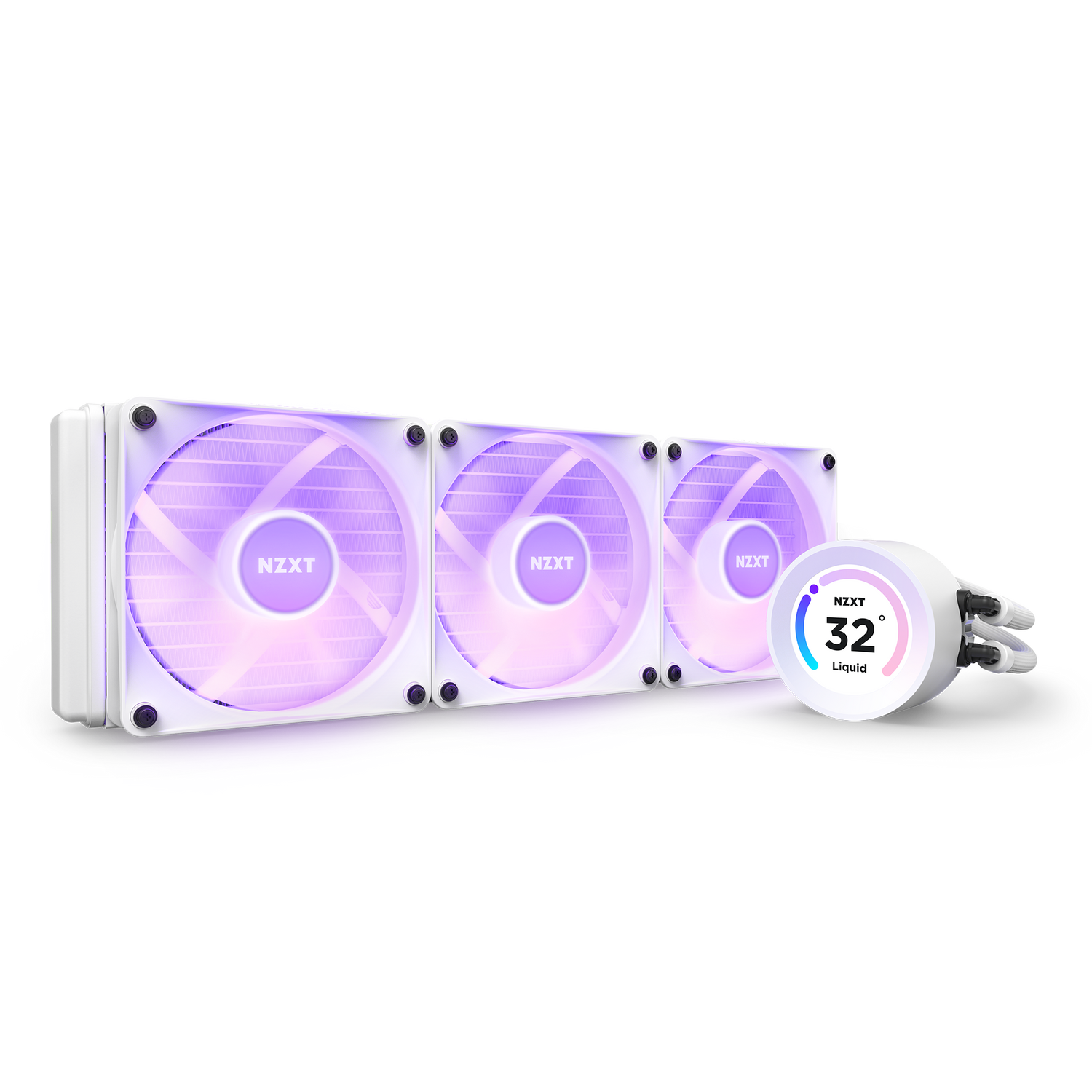

NZXT Announces Their Newest Line of Krakens AIO Liquid Coolers: Kraken Elite and Kraken and New RGB H Series Cases

NZXT Announces Their Newest Line of Krakens AIO Liquid Coolers:   Kraken Elite and Kraken and New RGB H Series Cases

As a prominent figure in the PC gaming hardware and services industry, NZXT is excited to unveil the latest iterations of its popular all-in-one liquid CPU coolers: the Kraken and Kraken Elite. These innovative coolers maintain NZXT's signature aesthetic and deliver superior cooling performance, all while integrating essential data visualization through NZXT CAM—a complimentary software suite designed to help users monitor, control, and personalize their NZXT devices.



The Kraken series, now available in 240mm, 280mm, and 360mm sizes, boasts an array of improvements over its predecessors, the Kraken X-3 and Kraken Z-3. Among these upgrades, the Kraken Elite features a 2.36" LCD screen with an enhanced resolution, frame rate, viewing angle, and color accuracy. This vivid display allows for the presentation of data sourced from NZXT CAM, as well as static or animated imagery, with remarkable clarity. Meanwhile, the standard Kraken model is equipped with a 1.54" LCD screen that can showcase system temperatures and static images from NZXT CAM.



In terms of performance, both the Kraken and Kraken Elite are engineered with a silent yet powerful 7th-generation Asetek pump. Users can select from either the High Static Pressure F Series fans or the newly launched F Series Core RGB fans to effectively cool the latest Intel and AMD CPUs. To further streamline the user experience, NZXT has simplified the installation process with a single breakout cable and reinforced tubing for increased durability.

NZXT is also broadening its product offerings with the introduction of RGB versions for the H5 Flow and H7 Flow, as well as an updated model of the H7 Elite. This revamped H7 Elite comes pre-installed with the new F Series Core RGB fans and includes an RGB controller for a seamless out-of-box RGB experience, all managed through NZXT CAM.

In conjunction with these product releases, NZXT has updated the CAM software with new features tailored specifically for the Kraken Elite and Kraken Z-3 series. These enhancements include a dual infographic and carousel mode for displaying system data, and GIPHY integration, which allows users to browse and apply a vast collection of GIFs to their Kraken's screen. Furthermore, the browser stream mode enables users to showcase data from websites like Google Photos, Spotify, or any site of their choice, adding even greater customization and functionality to their builds.


Key Facts about the Kraken Series


Stay Cool

  • The 7th gen Asetek pump ensures your Kraken cools and stays quiet
  • F Series Fans provide High Static Pressure to optimize air push through your radiator. This allows for superior heat dissipation.
    • Fluid Dynamic Bearing (FDB) ensures smooth, quiet operation with a long lifespan.
    • Enjoy precision PWM control, which means fans cool quickly when needed, but stay quiet at lower loads for maximum efficiency
  • RGB Varitents include the F Series RGB Core fans that give a vibrant feel to your gaming setup with the 8 individually addressable RGB LEDs on each fan.

Simple Installation

  • Setup is made simple with a single breakout cable that removes the guesswork from the installation process.
  • The liquid tubes are protected with reinforced nylon-braided sleeves for durability and worry-free handling.
  • Includes mounting accessories for the latest Intel and AMD motherboards

NZXT CAM Ready

  • Personalize screen content with user-friendly NZXT CAM software.
  • Control fan and pump speed by running your fans at 0 RPM mode at low temperatures for a quiet operation.
  • Set your Kraken’s RGB and other NZXT lighting effects to cater to your setup’s style.

Performance in Real Time

  • Display custom images and system specs in real-time on the 1.54" diameter LCD screen.
  • Transmissive TFT, 262K color display with 240p x 240p resolution, brightness of 300 cd/m², and a viewing angle of 80°.

Kraken Elite Exclusive Features


Eye-Catching Quality

  • Showcase your favorite images, animated GIFs, and CAM information with outstanding visual quality.
  • The Kraken Elite’s 2.36" wide-angle TFT-LCD screen comes with a 640 x 640 resolution, brightness of 690 cd/m², and a refresh rate of 60 frames per second, which offers a clear and sharp picture with enhanced color accuracy and is visible from more viewing angles.

Personalize screen content with new NZXT CAM Features:

  • GIPHY integration is now within NZXT CAM, allowing you to pick your favorite GIF within NZXT CAM easily.
  • A new Browser Stream to display things from Google photo albums, Spotify “Now playing,” and your favorite websites.
  • The ability to relay CAM system info with animations and infographics.
  • Screen Rotation in 30° increments to support several pump orientations. (before 90° increment)

Kraken MSRP:


Non-RGB

RGB

Kraken 240:

$139.99

Kraken 240 RGB:

$179.99

Kraken 280:

$159.99

Kraken 280 RGB:

$199.99

Kraken 360:

$179.99

Kraken 360 RGB:

$219.99


Kraken Elite MSRP:


Non-RGB

RGB

Kraken Elite 240:

$239.99

Kraken 240 RGB:

$259.99

Kraken Elite 280:

$249.99

Kraken 280 RGB:

$269.99

Kraken Elite 360:

$279.99

Kraken 360 RGB:

$299.99


H Series RGB Cases MSRP:

H5 Flow RGB: $119.99

H7 Flow RGB: $159.99

H7 Elite (2023): $199.99




Availability: Now


Please visit NZXT.com for additional information.



About NZXT

Founded in 2004, NZXT is a leader of gaming products and services. Their award-winning products include computer cases, PC cooling solutions, RGB lighting kits, power supplies, and their free PC monitoring software, CAM. NZXT was created out of a passion for PC gaming and is dedicated to improving products and services to achieve extraordinary gaming experiences.


About Asetek

Asetek, the creator of the all-in-one liquid cooler is the global leader in liquid cooling solutions for high-performance gaming and enthusiast PCs, and environmentally aware data centers. Founded in 2000, Asetek is headquartered in Denmark and has operations in China, Taiwan and the United States. Asetek is listed on the Oslo Stock Exchange (ASETEK.OL). www.asetek.com



Kraken

Kraken general specifications

Water Block

Dimensions

Diameter: 74.7mm H: 55.97mm

Material

Block: Copper

Housing: Plastic

Pump

Motor Speed

800 – 2,800 ± 300 RPM

Power

12VDC, 0.3A

Tube

Length

400mm

Material

Ultra-low Evaporation Rubber with Nylon Braided Sleeve

CAP

Material

Plastic

Display Orientation

Software adjustable Default, +90, +180, and -90 Degrees

Display Panel Active Area

1.54" (39.1mm) diagonal

Display Color

24-bit true color LCD

Display Resolution

240 x 240 px

Display Brightness

300 cd/m²

Display Panel Type

Transmissive TFT, 262K color

Compatible Socket & CPU

Intel

Intel Socket LGA 1700, 1200/115X

Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron

AMD

AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)

AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper

Others

Limited Warranty

6 Years


Kraken Non-RGB Models

Kraken Elite 240

Kraken Elite 280

Kraken Elite 360

Fan

Model

F120P Static Pressure Fan

F140P Static Pressure Fan

F120P Static Pressure Fan

Quantity

2

2

3

Dimension

120 x 120 x 26mm

140 x 140 x 26mm

120 x 120 x 26mm

Speed

500-1,800 ± 180 RPM

500-1,500 ± 150 RPM

500-1,800 ± 180 RPM

Air Flow

21.67 - 78.02 CFM

33.22 - 99.68 CFM

21.67 - 78.02 CFM

Air Pressure

0.75 - 2.7mm-H2O

0.91 - 2.75mm-H2O

0.75 - 2.7mm-H2O

Noise

17.9 - 30.6dBA

19.4 - 32.1dBA

17.9 - 30.6dBA

Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Power Consumption

12V DC, 0.23A, 2.76W

12V DC, 0.28A, 3.36W

12V DC, 0.23A, 2.76W

Connector

4-pin PWM

4-pin PWM

4-pin PWM

Life

60,000 hours / 6 Years

60,000 hours / 6 Years

60,000 hours / 6 Years

Radiator

Dimensions

123 x 275 x 30mm

143 x 315 x 30mm

121 x 394 x 27mm

Material

Aluminum


Kraken RGB Models

Kraken Elite 240 RGB

Kraken Elite 280 RGB

Kraken Elite 360 RGB

Fan

Model

F120RGB Core Fans

F140RGB Core Fans

F120RGB Core Fans

Quantity

2

2

3

Dimensions

120 x 120 x 26mm

140 x 140 x 26mm

120 x 120 x 26mm

Speed

500-1,800 ± 180 RPM

500-1,500 ± 150 RPM

500-1,800 ± 180 RPM

Air Flow

78.86 CFM

90.79 CFM

78.86 CFM

Air Pressure

2.57 mm H2O

3.22 mm H2O

2.57 mm H2O

Noise

33.88 dBA

34.48 dBA

33.88 dBA

Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Power Consumption

12 V DC, 0.2 A, 2.4 W

12 V DC, 0.24 A, 2.88 W

12 V DC, 0.2 A, 2.4 W

Connector

4-pin PWM

4-pin PWM

4-pin PWM

Life

60,000 hours / 6 Years

Radiator

Dimensions

123 x 275 x 30mm

143 x 315 x 30mm

121 x 394 x 27mm

Material

Aluminum

RGB Controller

Dimensions

63.2 x 53.2 x 12.8mm

Weight

52.8g

Mounting

Magnet and 3M Dual Lock

Connection Cables

1x USB 2.0 internal connector

1x SATA power cable

Input Connector

12V DC / 2.6A

RGB Lighting Channels

3

Output Channel Voltage

5V DC

NZXT RGB Channel Output

Up to 40 LEDs per channel

Up to 120 LEDs combined total for the total 3 channels


Kraken Elite

Kraken Elite General specifications

Water Block

Dimensions

Diameter: 81.9mm H: 59.5mm

Material

Block: Copper

Housing: Plastic

Pump

Motor Speed

800 – 2,800 ± 300 RPM

Power

12VDC, 0.3A

Tube

Length

400mm

Material

Ultra-low Evaporation Rubber with Nylon Braided Sleeve

CAP

Material

Aluminum and plastic

Display Orientation

Software adjustable Default, +90, +180, and -90 Degrees

Display Panel Active Area

2.36” (60mm) diameter

Display Color

24-bit true color LCD

Display Resolution

640 x 640 px

Display Brightness

690 cd/m²

Display Panel Type

TFT-LCD (Wide Viewing Angle)

Compatible Socket & CPU

Intel

Intel Socket LGA 1700, 1200/115X

Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron

AMD

AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)

AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper

Others

Limited Warranty

6 Years


Kraken Elite Non-RGB Models

Kraken Elite 240

Kraken Elite 280

Kraken Elite 360

Fan

Model

F120P Static Pressure Fan

F140P Static Pressure Fan

F120P Static Pressure Fan

Quantity

2

2

3

Dimension

120 x 120 x 26mm

140 x 140 x 26mm

120 x 120 x 26mm

Speed

500-1,800 ± 180 RPM

500-1,500 ± 150 RPM

500-1,800 ± 180 RPM

Air Flow

21.67 - 78.02 CFM

33.22 - 99.68 CFM

21.67 - 78.02 CFM

Air Pressure

0.75 - 2.7mm-H2O

0.91 - 2.75mm-H2O

0.75 - 2.7mm-H2O

Noise

17.9 - 30.6dBA

19.4 - 32.1dBA

17.9 - 30.6dBA

Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Power Consumption

12V DC, 0.23A, 2.76W

12V DC, 0.28A, 3.36W

12V DC, 0.23A, 2.76W

Connector

4-pin PWM

4-pin PWM

4-pin PWM

Life

60,000 hours / 6 Years

60,000 hours / 6 Years

60,000 hours / 6 Years

Radiator

Dimensions

123 x 275 x 30mm

143 x 315 x 30mm

121 x 394 x 27mm

Material

Aluminum


Kraken Elite RGB Models

Kraken Elite 240 RGB

Kraken Elite 280 RGB

Kraken Elite 360 RGB

Fan

Model

F120RGB Core Fans

F140RGB Core Fans

F120RGB Core Fans

Quantity

2

2

3

Dimensions

120 x 120 x 26mm

140 x 140 x 26mm

120 x 120 x 26mm

Speed

500-1,800 ± 180 RPM

500-1,500 ± 150 RPM

500-1,800 ± 180 RPM

Air Flow

78.86 CFM

90.79 CFM

78.86 CFM

Air Pressure

2.57 mm H2O

3.22 mm H2O

2.57 mm H2O

Noise

33.88 dBA

34.48 dBA

33.88 dBA

Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Fluid Dynamic Bearing

Power Consumption

12 V DC, 0.2 A, 2.4 W

12 V DC, 0.24 A, 2.88 W

12 V DC, 0.2 A, 2.4 W

Connector

4-pin PWM

4-pin PWM

4-pin PWM

Life

60,000 hours / 6 Years

Radiator

Dimensions

123 x 275 x 30mm

143 x 315 x 30mm

121 x 394 x 27mm

Material

Aluminum

RGB Controller

Dimensions

63.2 x 53.2 x 12.8mm

Weight

52.8g

Mounting

Magnet and 3M Dual Lock

Connection Cables

1x USB 2.0 internal connector

1x SATA power cable

Input Connector

12V DC / 2.6A

RGB Lighting Channels

3

Output Channel Voltage

5V DC

NZXT RGB Channel Output

Up to 40 LEDs per channel

Up to 120 LEDs combined total for the total 3 channels
