Darmoshark M3

M3 Triple-mode Game Mouse Specifications

Size

129.55*66.12*39.23mm

Number Of Keys

7KEY

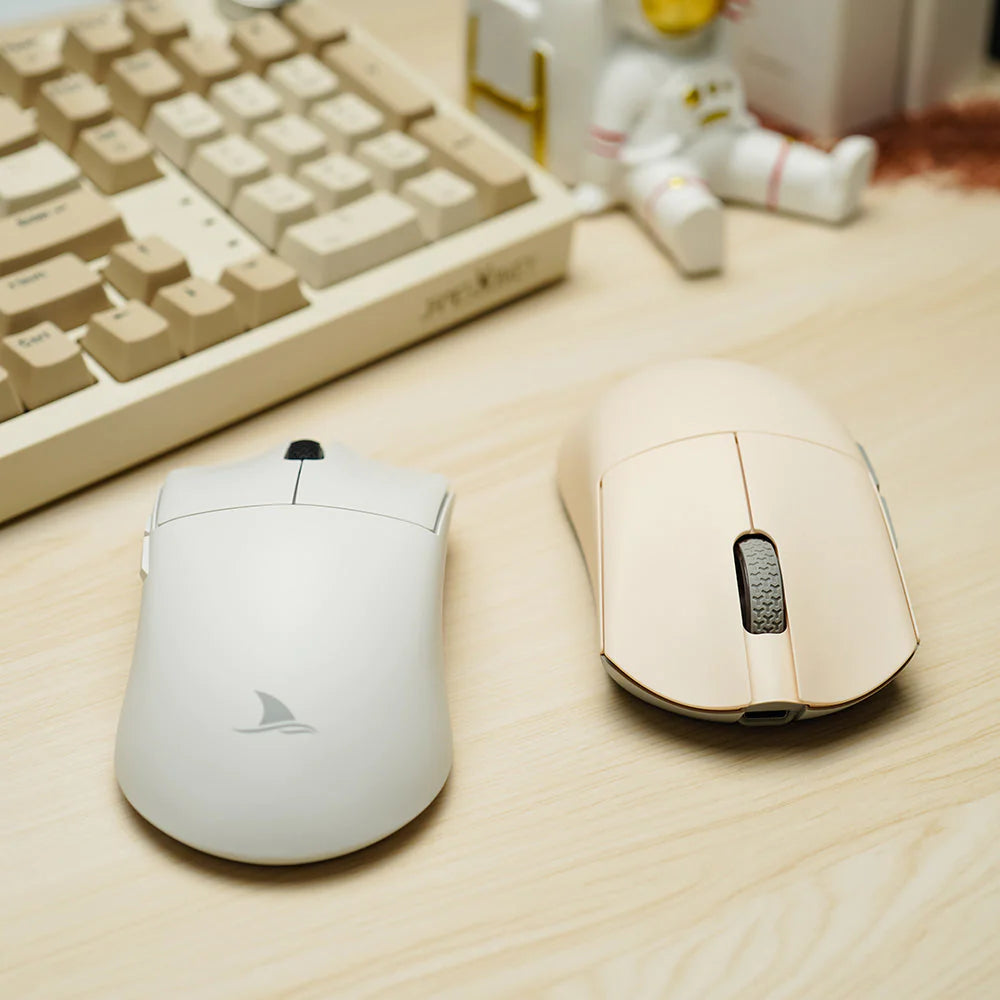

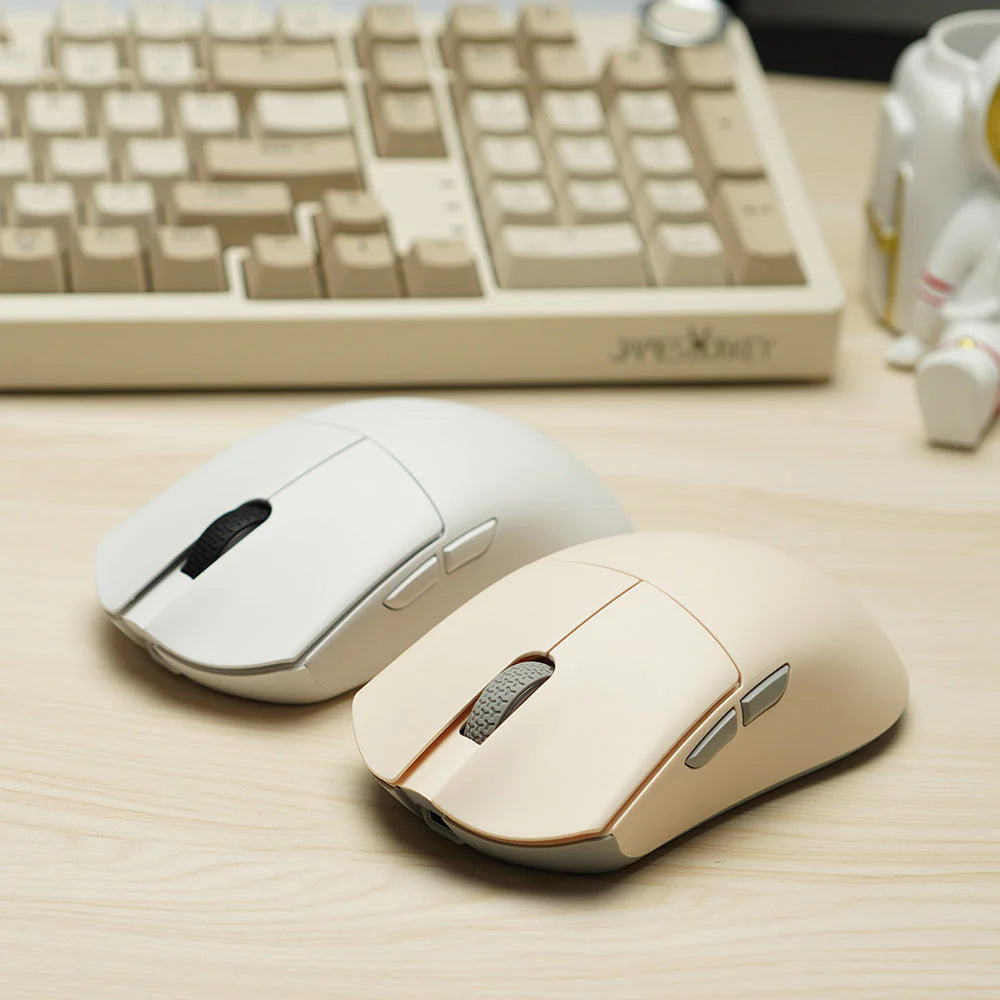

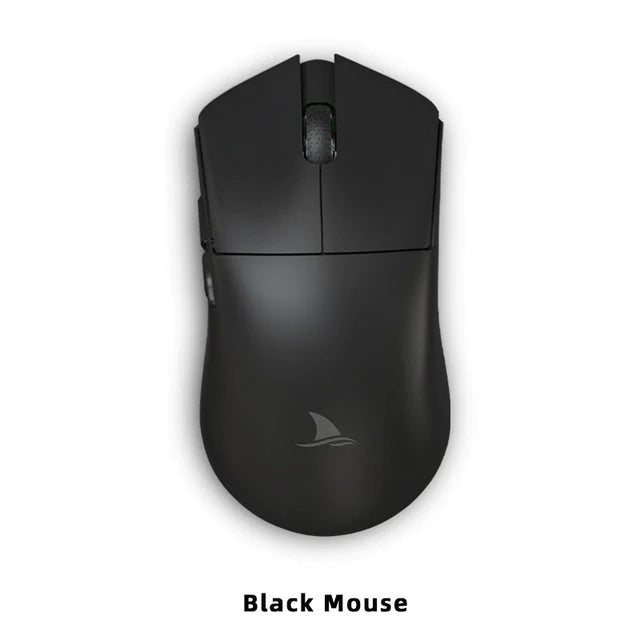

Color

Black / White / Camel Color

Weight

Net weight 58±5G, Receiver 1.6G

Shell material

ABS

Apron

Black rubber

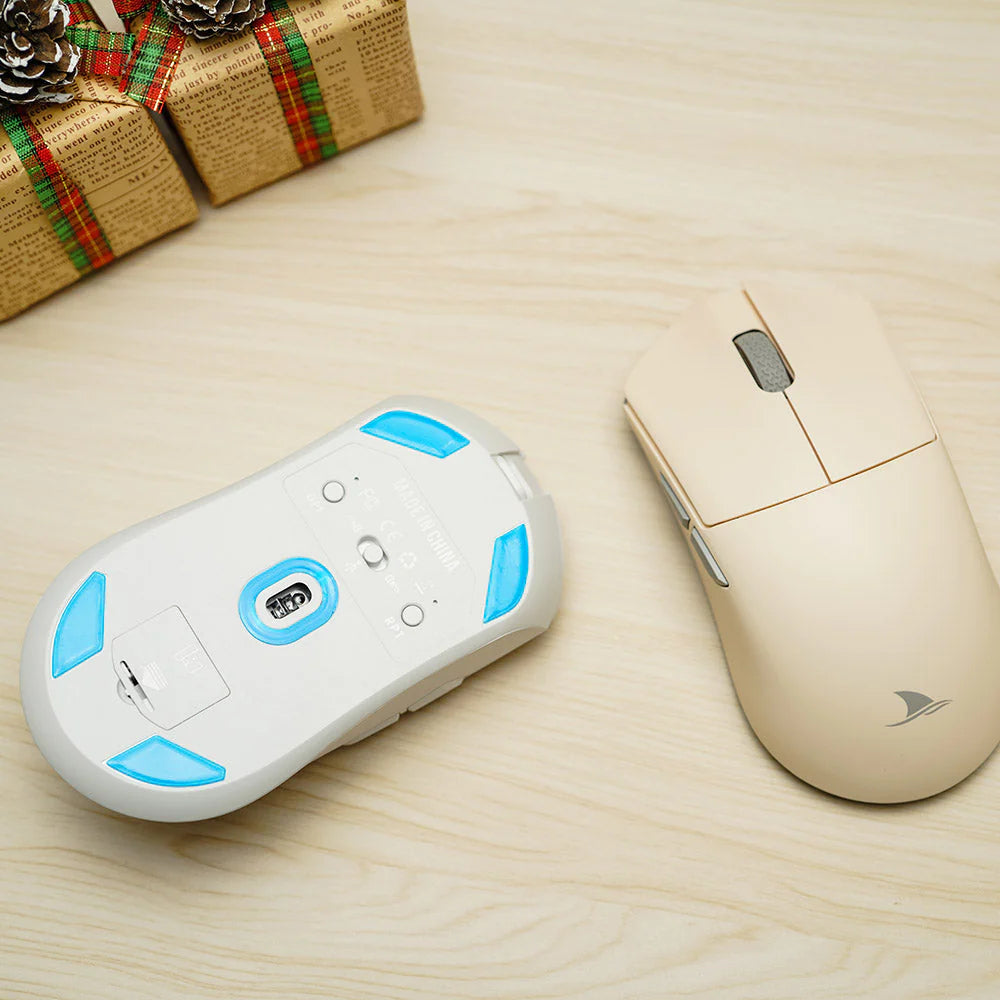

Foot Stickers

Teflon PTFE(black)

NANO Receiver

Built in Bottom

Left and right switch operating force

Kailh 60±5gf

Left and right switch life

8000Ten thousand times

Middle key switch operating force

UniversalHuano65±10gf

Middle key switch life

500Ten thousand times

Side key switch operating force

UniversalHuano65±10gf

Side key switch life

300Ten thousand times

3DKey operation force

100±20gf(vertical force at the center of the mouse button)

Encoder

Feng shi Wei qi F-SWITCH

Encoder life

100Ten thousand circles

master control IC

Three-mode Telink micro-Telink solution,2.4G/Bluetooth 5.0/wired

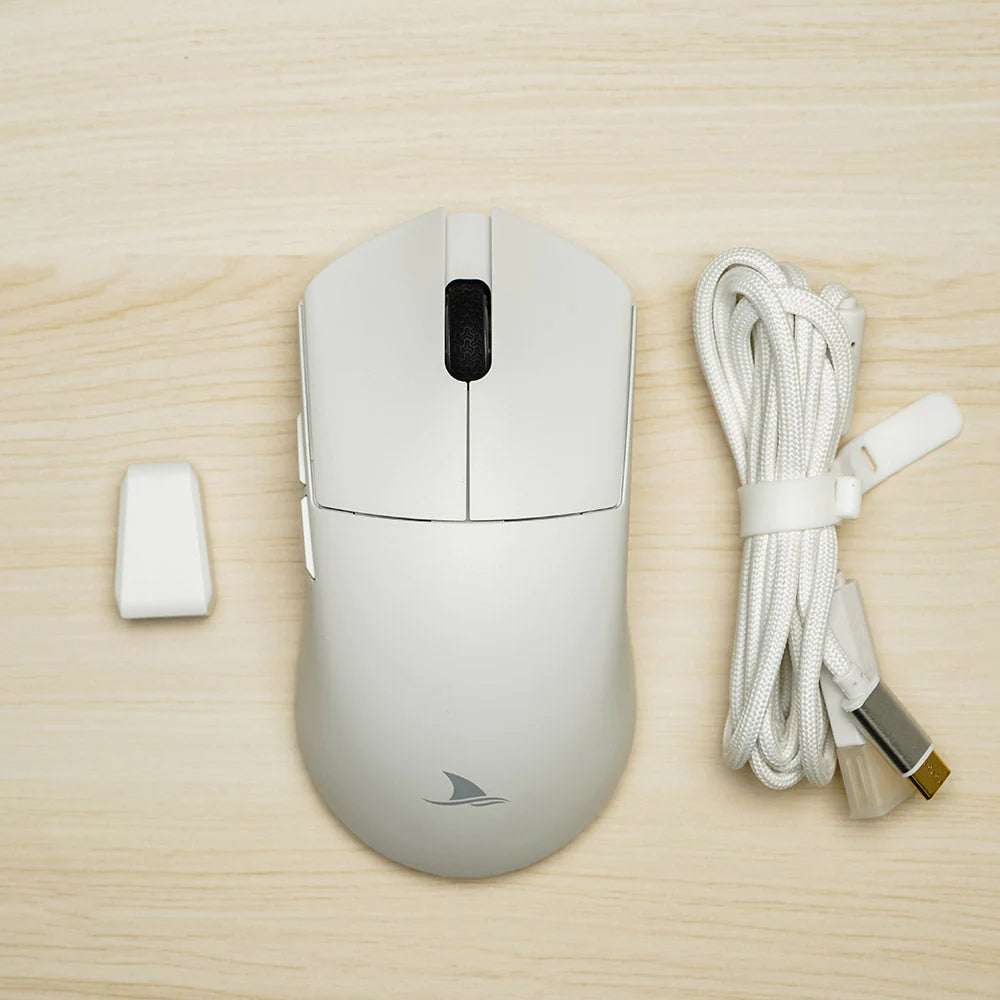

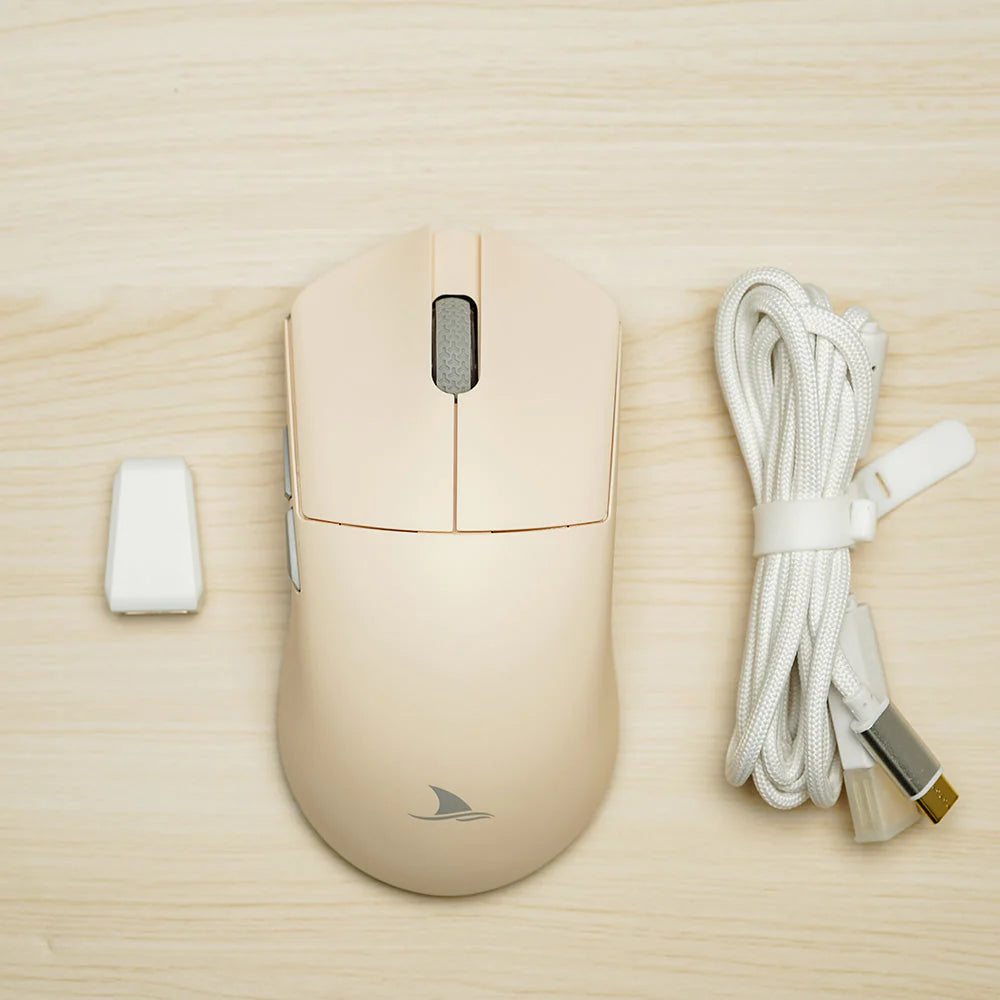

Wire

Type-C Data cable five-core braided flash rope with magnetic ring

Wire length

Total wire length: 2M±1%

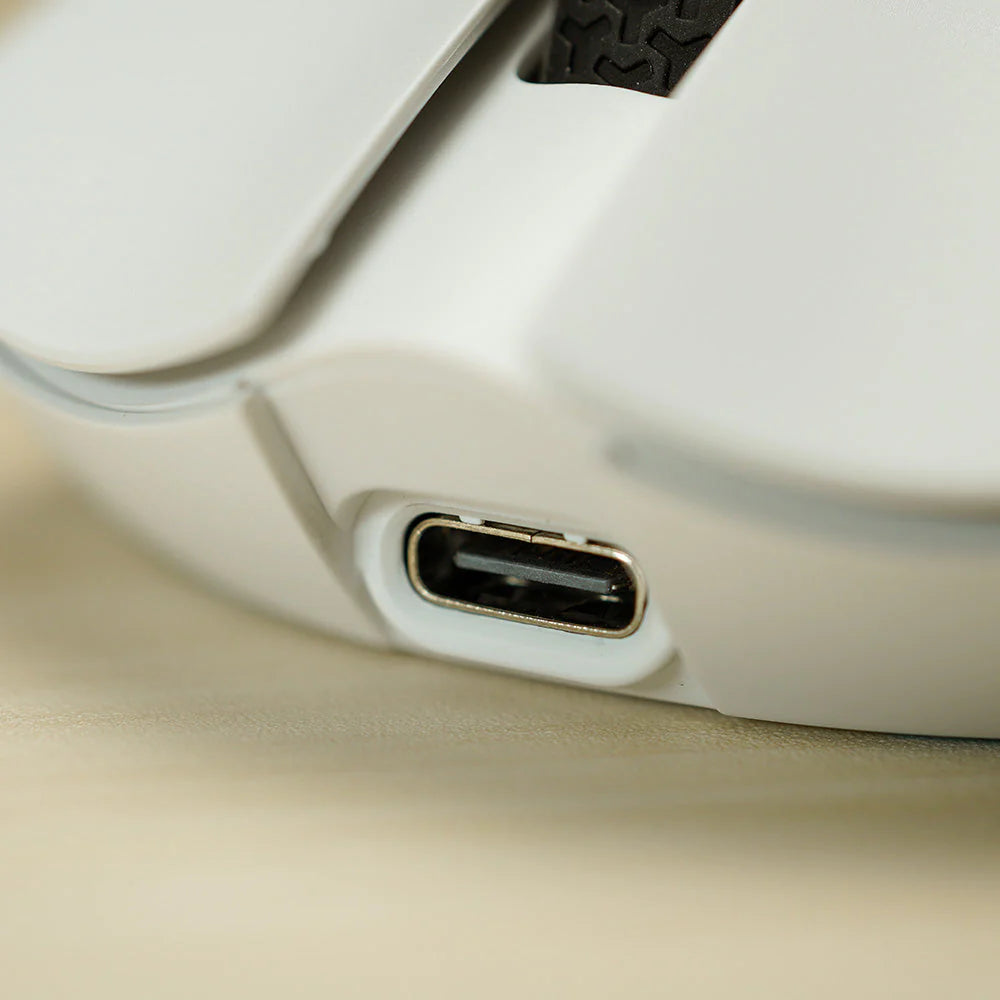

Interface

GildedUSB2.0 Type-C interface

Operating temperature

-10℃—50℃

Working Humidity

10-90%RH

Operating Voltage

USB Wired:DC5V±5% Wireless:DC3.7V

Working current

USB Wired:<50MA Wireless:lights are always on<15MA, dull<6MA

Lithium Battery

Capacity 500MAH;Endurance without light: About 130 hours between intervals of use (calculated for 8 hours of office work);About 83 hours of continuous use;

Operating System

Wired and 2.4G mode: WinXP/Win7/Win8/Win10/Win11/Macos
Bluetooth mode:Win8/Win10/Win11/Macos

Bottom sensor Light

Infrared light

DPI/Return Indicator

On for three seconds and off

Photoelectric IC

PAW3395

Highest Resolution

26000DPI(driver can be set)

DPI factory default

5partDPI cycle adjustment: 400 red, 800 blue (default), 1600 green, 3200 purple, 4800 orange

Wired/2.4G Return Rate

Adjustable buttons at the bottom: red light125HZ, blue light500HZ(default), green light1000HZ

Wired/2.4G return rate

Adjustable buttons at the bottom: red light125HZ, blue light500HZ(default), green light1000HZ

Bluetooth rate of return

The default 125HZ is not adjustable

SPI sampling time

Changes in sync with the rate of return: 8ms/2ms(default)/1ms

FPS Image Processing

26000fps

Maximum speed

650ips

Acceleration

50g

Drive

only support Windows system

Wireless transmission distance

The measured distance in the office environment is about 10 m

computer connection

Plug and play in wireless mode, when wired and wireless are used at the same time, it is preferentially recognized as wired mode

Wake up from hibernation

charging indication

When the data cable is connected, the indicator light of the roller position is always red, indicating that it is charging, and it will turn off after it is fully charged. (Charging time is about 3-5 hours)
Note: This product supports up to DC5V charging voltage and 300MA charging current. We are not responsible for any problems caused by improper charging.

low battery indicator

When the wheel position indicator is blinking yellow,Indicates that the battery is low and needs to be charged,In order to ensure the normal use of the mouse(Slight deviation according to actual usage)

2.4G and Bluetooth mode indicators

When the three-position switch at the bottom is turned to the G icon, the green light at the position of the scroll wheel will be on for three seconds and turn off.
When the three-position switch at the bottom is turned to the B icon, the blue light at the position of the scroll wheel will be on for three seconds and then turn off (provided that the Bluetooth connection is successful).

Bluetooth pairing operation

When the three-position switch at the bottom is turned to the B icon, press the left, middle and right buttons at the same time, the blue light at the position of the wheel will flash, and enter the pairing state. At this time, you need to turn on the Bluetooth device and search for the M3 Mouse to pair. After the connection is successful, the indicator light goes out.

2.4G pairing operation

When the three-position switch at the bottom is turned to the G icon, press the left, middle and right buttons at the same time, the green light at the wheel position will flash, and enter the pairing state. At this time, you need to insert the receiver. After the connection is successful, the indicator light will go out. (Note: The pairing is OK at the factory. If the 2.4G has no function, you can follow this step)

wired mode

When plugging in the type-c data cable connection, the wired mode is preferred.
